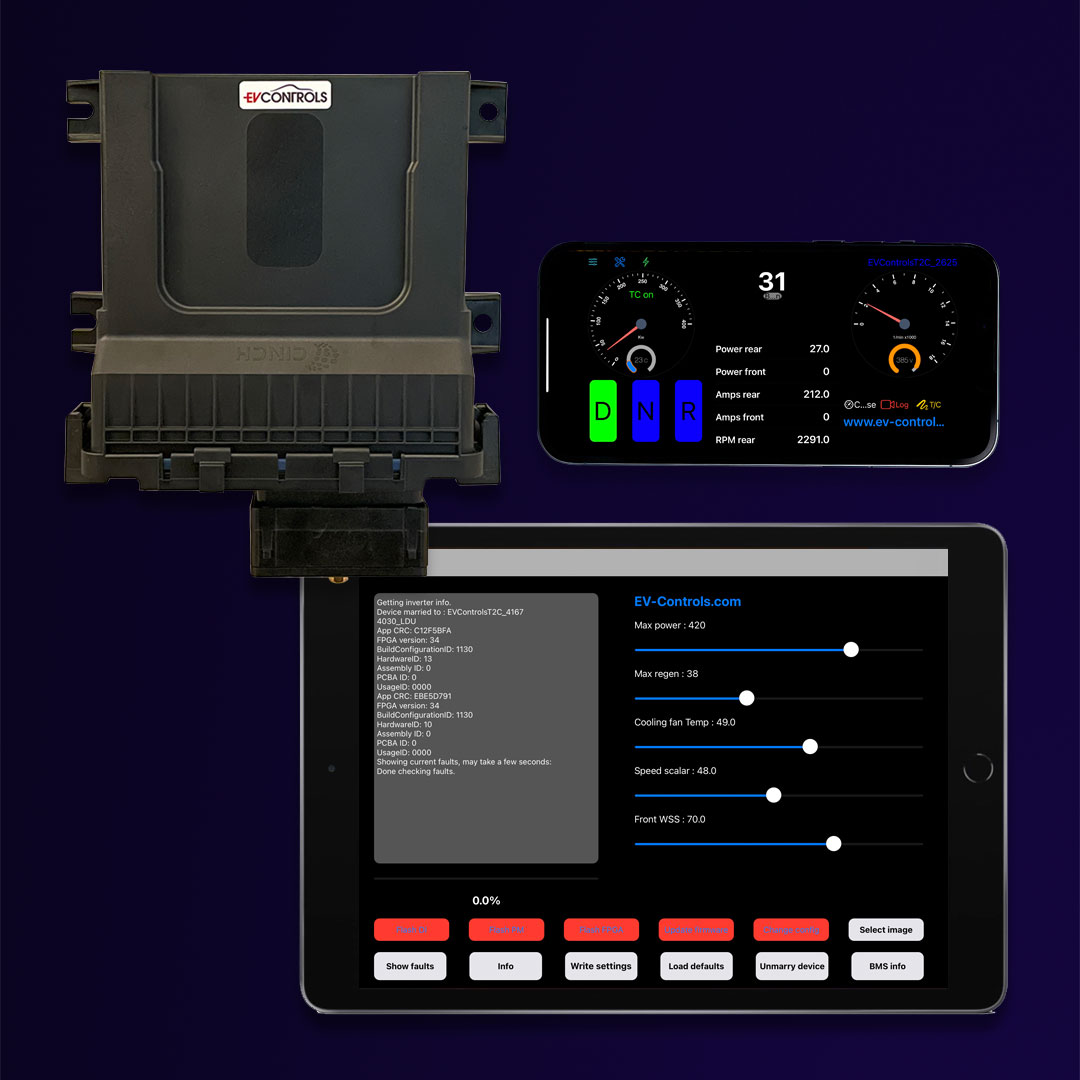

EV Controls T-2C with iPad and iPhone
EV Controls T-2C

EV Controls T-2C

The EV Controls T-2C allows control of Tesla drive units for EV-conversions or other uses.

Benefits include:

  • Compatible with the following powertrain configurations;
  • all Model S and X large rear drive units
  • Model S and X small rear drive units used in 2WD installations
  • Model 3 rear drive units used in 2WD installations
  • dual motor performance powertrains from Model S and X P85/90/100D (non-raven)
  • dual motor powertrains from Model S and X 70/75/85/90/100D (non-raven)
  • dual motor powertrains for Model 3 and Y, performance and non-performance.
  • Does not require disassembly of the drive unit or removal of inverter logic board.
  • The T-2C will reflash the inverter firmware if required (one drive unit per unit purchased).
  • Retains protection strategies against overheating and other damaging conditions, excellent reliability.
  • Dash app runs on iPad and connects to T2C over bluetooth, no wiring required between the controller and iPad.
  • Capable of OTA firmware updates when new features are added.
  • Proven to outperform other options in terms of driveability, reliabilty, performance and efficiency, nothing runs a Tesla drive unit better than the OE Tesla software and hardware. This is based on real world testing by many customers who have tried them all.

Questions? Check out our FAQs.

$2,699.00

Category:
Share This:

Description

The T2C is a controller that allows you to install and control a Tesla drive unit in any vehicle. This can be used for electric vehicle conversions, or purpose built vehicles. The T2C allows pushbutton control of driving modes (Drive, neutral, reverse) and outputs to control brake/regen lights, reverse lights, contactors, cooling fan control and drive indicator lights. This unit is bluetooth and Wifi capable, and interfaces with the EV-Controls Dash app available in the apple app store now. This gives you access to the Tesla inverter drive modes, power settings, datalogging and other controls, along with all the other iPad features like navigation, music, web browser, e-mail etc.. The app allows you to change settings like max power, and regen levels on the fly. The unit’s firmware can be updated over the air when new features are added. It also includes data logging functionality and fault code readout capabilities. See our YouTube channel for videos of the unit and app in action.



Here is a link to the T2C manual which includes more detail along with wiring diagrams for typical installations.



Current features offered by the T2C include the following:

For model 3 and Y powertrains;

-Cruise control

-Traction control when used with our optional GNSS module

-Track mode on dual motor performance applications

-Sport and chill mode on supported drive units

-Ability to turn creep and hold mode on and off

-Datalogging to .csv files

-diagnostic capabilities

-Optional support for the full Model 3/Y battery pack

-On the fly adjustment of power and regen levels through the app

-Adjustment of min and max pack voltage limits

-Ability to save preset profiles for settings, and change them on the fly



For model S and X powertrains;

-Cruise control

-Traction control when used with our optional GNSS module

-Sport and chill mode on supported drive units

-Ability to turn creep and hold mode on and off

-Datalogging to .csv files

-diagnostic capabilities

-On the fly adjustment of power and regen levels through the app

-Adjustment of min and max pack voltage limits

-Ability to save preset profiles for settings, and change them on the fly



All pricing in USD.

EV Controls T-2C Apple App Store



Full featured controller for Tesla drive units, including iOS Dash app.



Additional information

Weight 0.5 kg
Dimensions 18 × 22 × 10 cm
