DRIVE UNIT CONTROL FOR
EV CONVERSIONS
FEATURES
Control Tesla Drive Units
EV Controls T-2C allows you to easily control a Tesla drive unit for use in a conversion.
Quick Install and Set up
Does not require disassembly of the drive unit or removal of inverter logic board.
Excellent Reliability
Retains protection strategies against overheating and other damaging conditions.
Supported Drive Units
Compatible with drive units from most Tesla models, including Model S / X and 3 / Y.
Re-flash Firmware
The T-2C Controller will re-flash the inverter firmware if required.
No Wiring Required
The dash app runs on an iPad and connects to T-2C Controller over bluetooth.
DREAM IT. BUILD IT.
EV CONTROLS IN ACTION
EV CONTROLS CUSTOM PROJECTS
VIDEOS

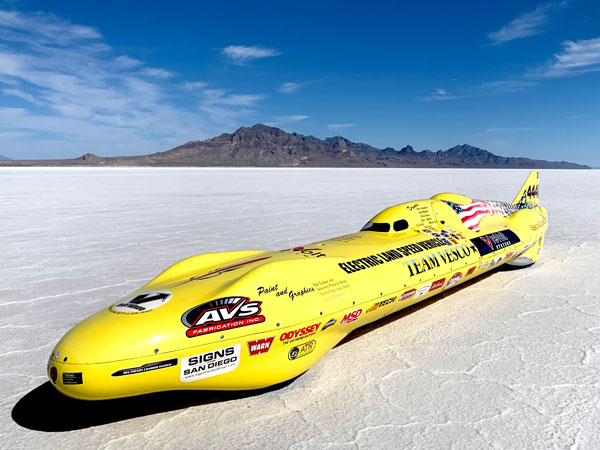

EV Controls helps set a new record for an EV.
In depth look at the world's fastest electric vehicle.
Jay Leno’s Garage
Bats#*t Crazy Tesla-Powered BMW M3 Pikes Peak Special From EV West
Tesla-powered Porsche 912: vintage meets electric
New Electric Land Speed Record – Tesla Powered Electraliner.
Project Electrollite - Plymouth Satellite Tesla Swap
Tesla powered 818 runs 9 seconds
T-2C Dash Demo Video
EV Controls T-2C iPad App Screen Capture
Tesla powered 1966 Chevrolet Impala review and test drive
Tesla Cobra EV at Mission Raceway Park
Electric 356 Porsche Speedster Car Build
Tesla Powered VW Manx Buggy | EV SHOW
New Tesla Controller – T2C EV Controls
Nice cobra using Ev controls
YOUR QUESTIONS ANSWERED
FAQs
We have support for all large drive units from the Model S and X.
We have support for the small rear drive units from Model S and X 70/75/85/90/100D for use in a single motor application.
We have support for the dual motor P85/90/100D powertrains for use in a dual motor application.
We have support for the Model 3 and Y rear drive unit for use in 2WD applications.
We have support for the Model 3 and Y dual motor powertrains for use in AWD applications.
We have support for all large drive units from the Model S and X.
We have support for the small drive units from Model S and X 70/75/85/90/100D for use in a single motor or dual motor applications, up to but not including the Raven models (2019).
We have support for the dual motor P85/90/100D powertrains for use in a dual motor applications.
We have support for the Model 3 and Model Y rear drive units, and front drive units when used in dual motor powertrains.
Yes, but you will need two controllers, and you would need to wire them both to one throttle pedal.
Many people ask this question, thinking it will outperform a dual motor powertrain using the large rear and small front drive unit from a performance Model S or X. In our experience, two large drive units will perform considerably worse than the small front/large rear combination due to the extra weight, short gearing/excess torque, and lack of a proper torque split strategy that the slave/master logic provides. This is all assuming you are using an AWD layout with one motor in the front and one in the rear. Obviously it works very well for something like a land speed car.
No, front drive units are slaves, and do not have the wiring for an accelerator pedal or brake switch, or the logic board needed for a 2WD application. They can only be used in dual motor applications.
Maybe, but this is a question for whoever makes the display you want to use. The data most people want to display is available on the CAN bus, but it would be up to whoever makes the gauges or display you want to use to parse and decode it, so you should contact them about this.
- Our free dash app displays everything necessary and includes logging and other functions that make it an excellent dashboard for almost all cases. See this video for info on the features and how to make it power on and off with the ignition using an automation. An iPad mini makes a great easy to read dash display that will fit in almost anything, and this is what we generally use in our test cars.
With the purchase of a T2C, we will supply a .dbc file with the information required to decode the following parameters from the CAN bus; Inverter temperatures, Power in kW, current, HV, Motor RPM, current gear (D, N, R). It will be up to you and/or the aftermarket display manufacturer to parse and convert the raw CAN data for your own use. The T2C will not drive any aftermarket displays directly besides our dash app.
